Barrel Jack Breakout Board Kit

$3.00

The Barrel Jack Breakout kit provides a modular power connection for your project.

2.1mm and 2.5mm versions are available. Assembly is quick and easy. Once assembled, no soldering is required to install or use the Barrel Jack Breakout board with your breadboard project.

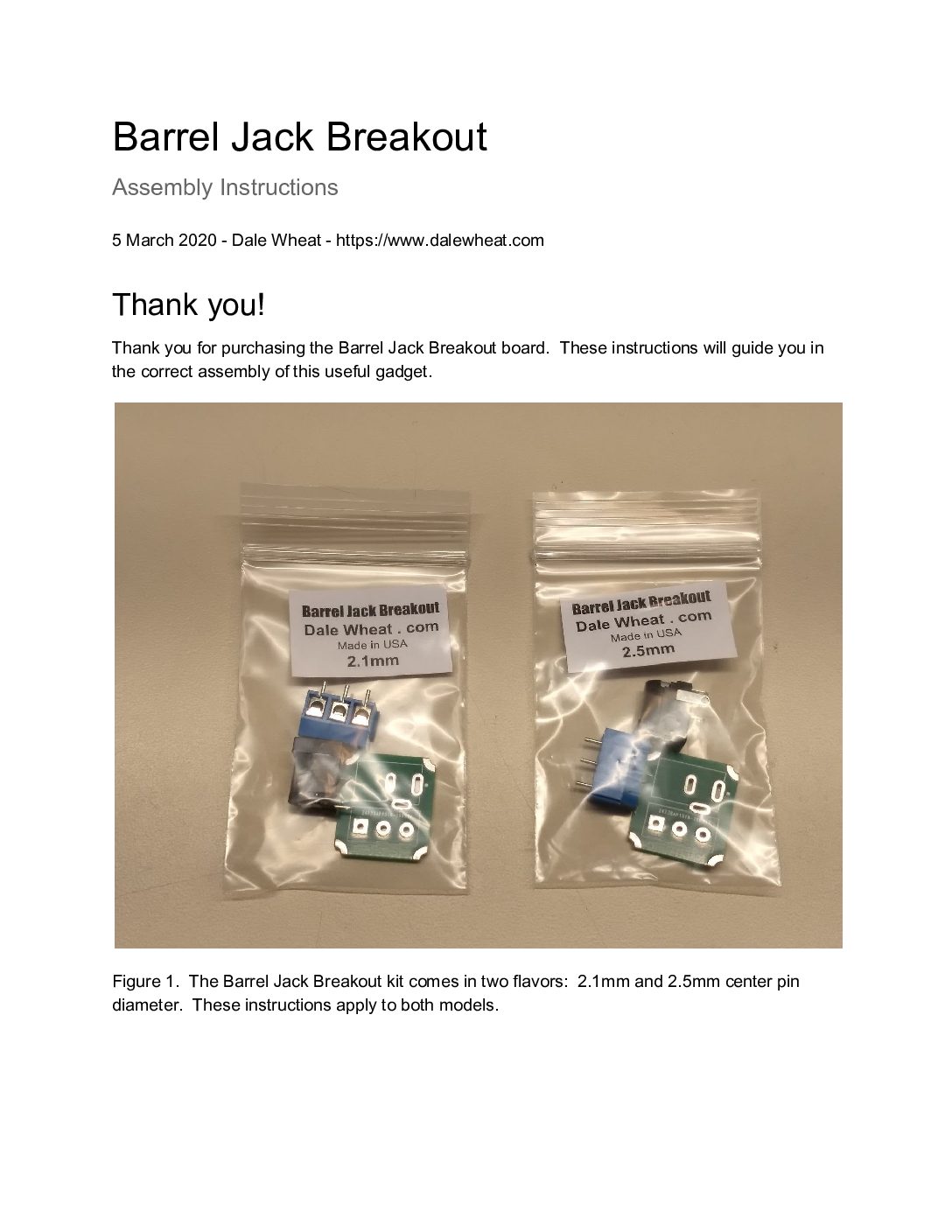

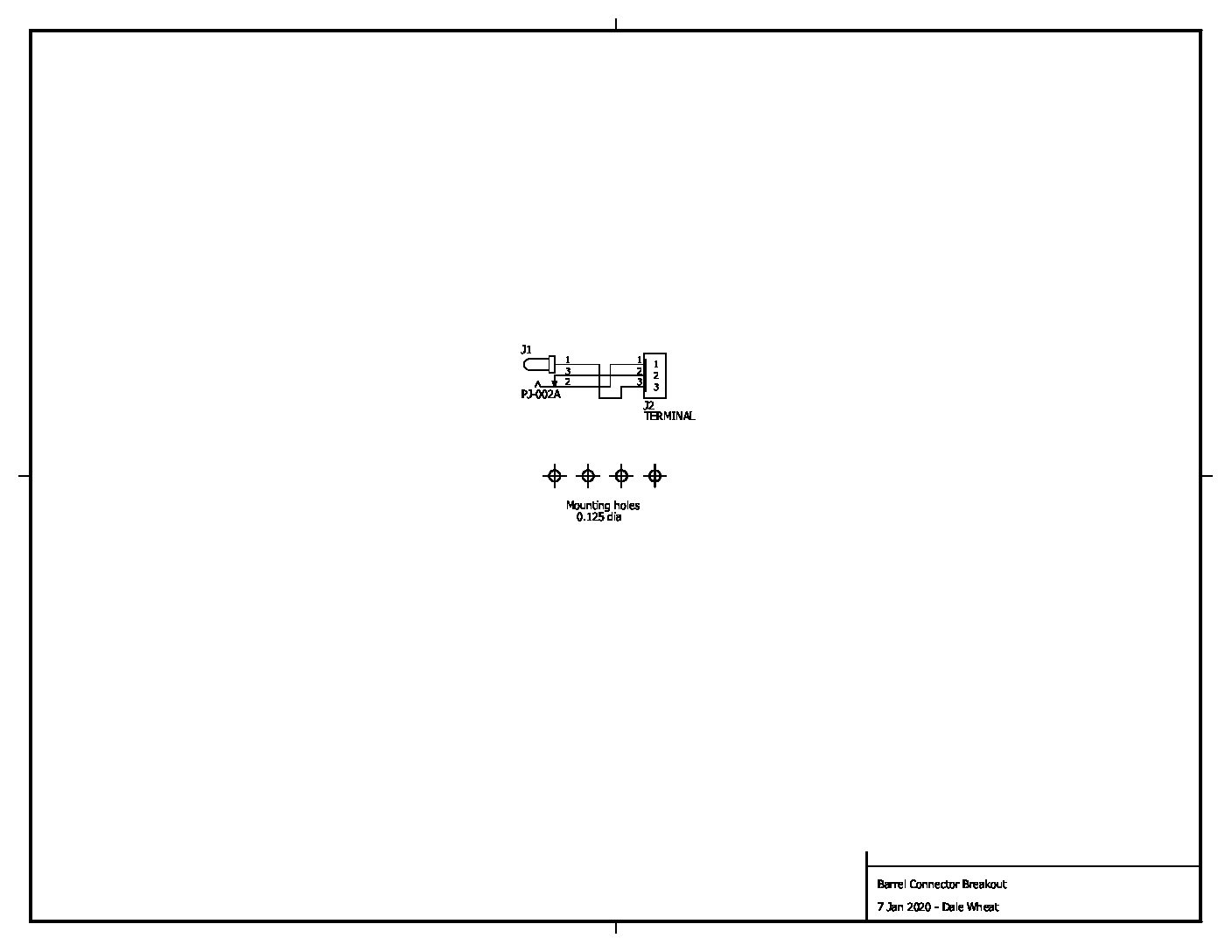

Assembly instructions & documentation | Schematic

Clear
SKU: BARRELJACK2020 Categories: , Tags: , , , ,

Description

What is it?

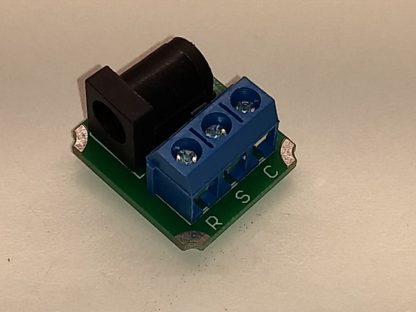

Another “Hobbyist Tools” category product, the Barrel Connector Breakout PCB is small DIY kit that allows electronics hobbyists to use modular barrel connector in their project without having to solder to a female jack/receptacle. The connectors have center, outer and switch connections that are bought out to a 3 pin screw terminal. Mounting holes let you robustly and securely mount the power adapter to your project.

Why do it?

Having a solid, reliable power connection is critical for prototyping electronic projects. Using this adapter makes power connections easy and trouble-free. Have one less thing to worry about in your electronic experiments – keep several of these handy adapters on your bench!

Benefits & Values

Low-cost breakout board provides robust, convenient and reliable power connection for hobby electronics projects.

Who benefits from this kit?

Electronic hobbyists can easily and reliably power their projects. Prototyping engineers can quickly produce proof-of-concept designs. Classrooms can provide project power options that don’t require soldering.

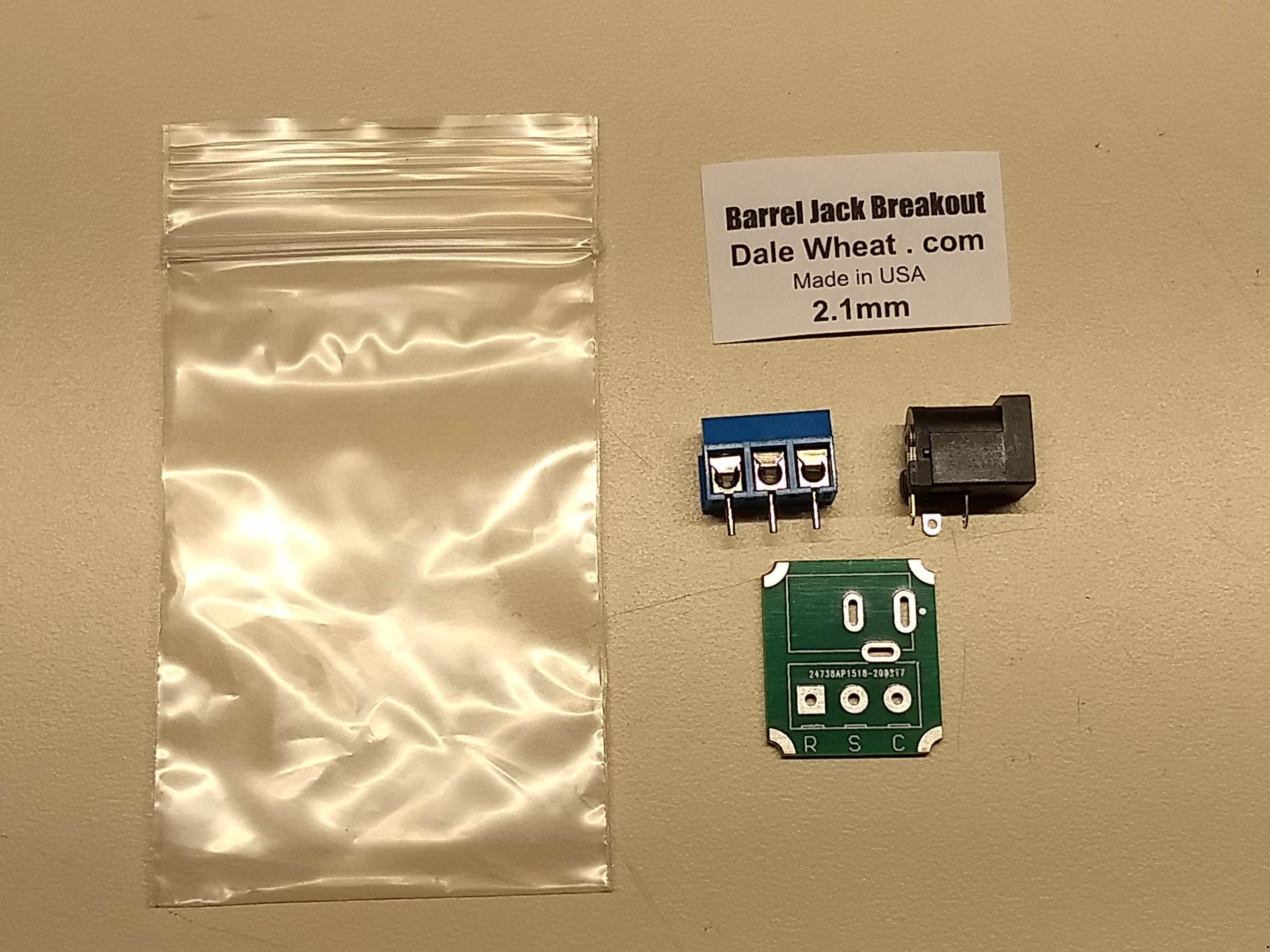

What’s included in the kit?

  • Resealable plastic bag 2″x3″
  • Printed circuit board
  • Barrel jack connector (2.1mm or 2.5mm)
  • 3-pin screw terminal block
  • Kit label

Additional information

Weight .25 oz
Dimensions 2 × 3 × .25 in
Assembly guide

https://www.dalewheat.com/barrel-jack-breakout-assembly-instructions/

Assembly required?

Yes, requires soldering

Extra tools required?

Soldering iron, Solder, Eye protection

Warnings & Cautions

Adult supervision required, Requires additional parts

Country of Origin

USA

Barrel Jack Size

2.1mm, 2.5mm
