12 LED Stick Kit

$8.00

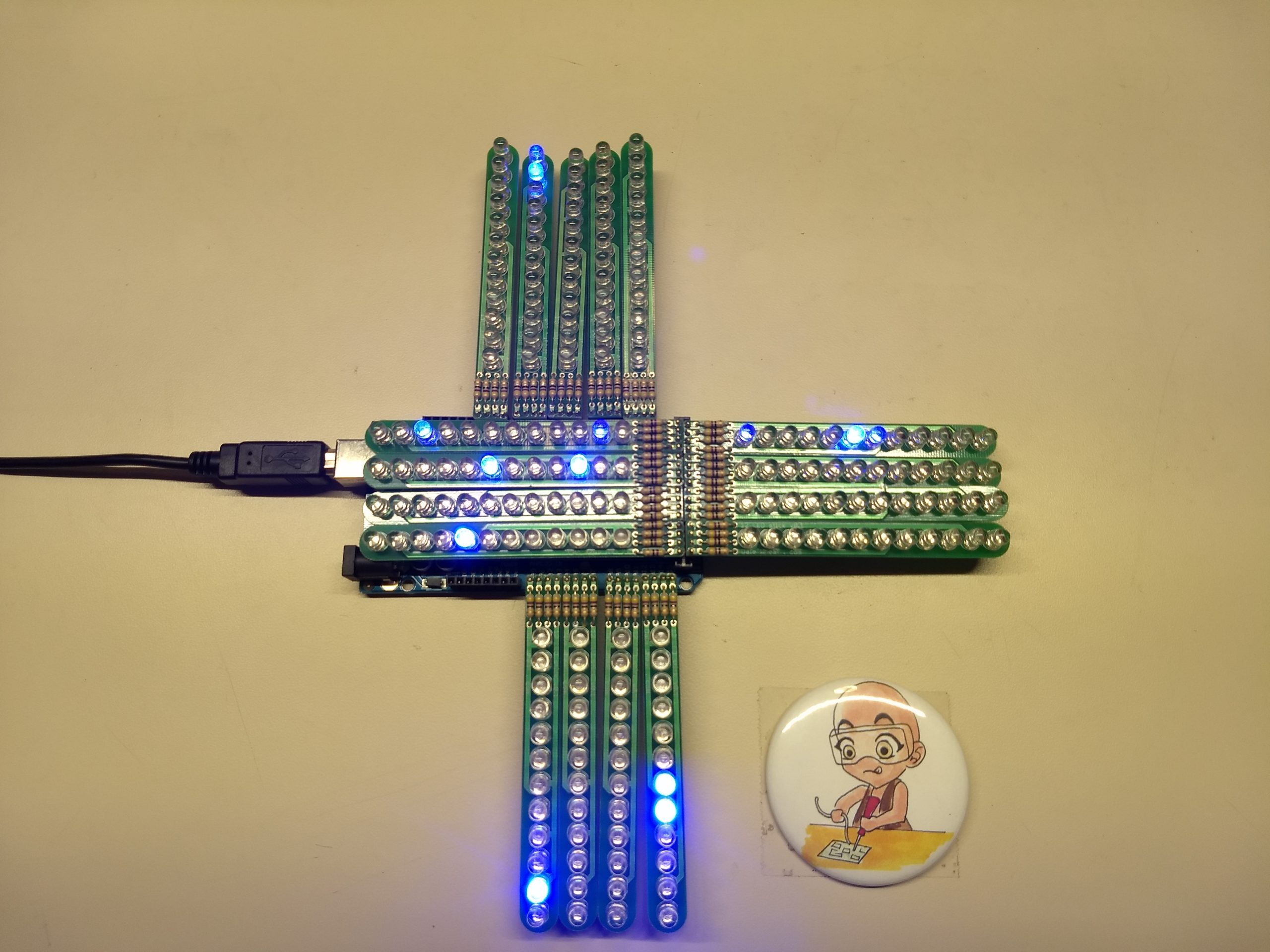

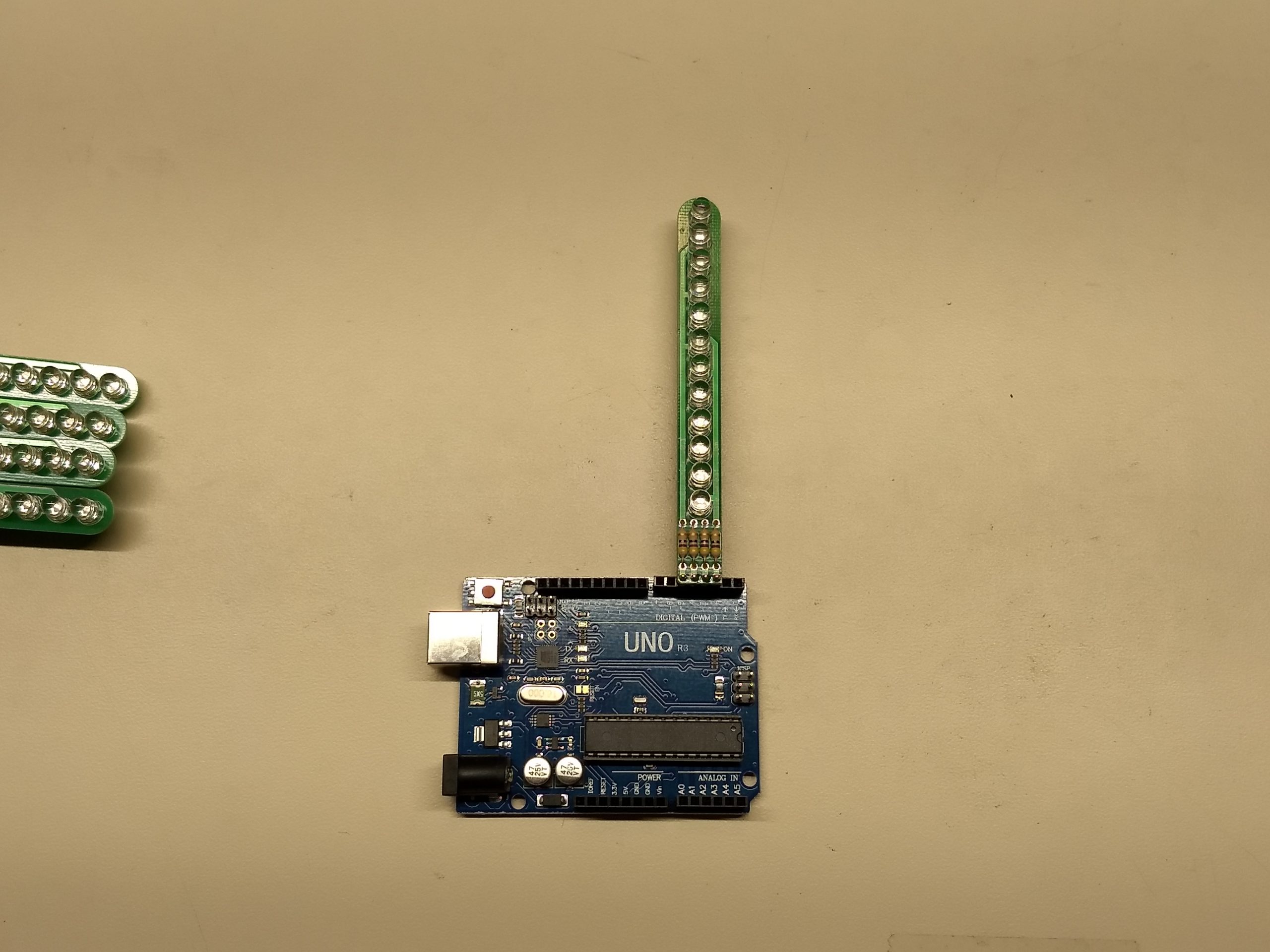

The 12LEDstick is a multiplexed linear array of blue 5mm LEDs that can be controlled with only four signals. An Arduino library and samples sketches are provided.

Assembly Manual | User Manual | Schematic | Arduino Sample Sketch

94 in stock (can be backordered)

SKU: TWELEDSTICK2020 Category: Tags: , , ,

Description

What is it?

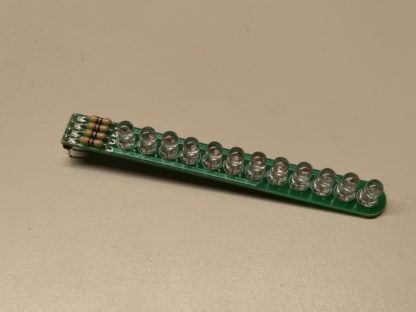

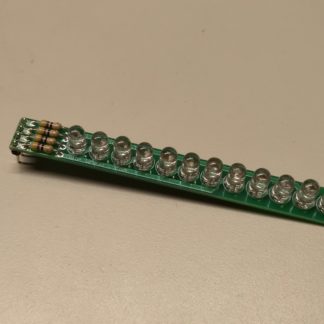

The 12LEDstick is a multiplexed (specifically Charlie-plexed) linear array of twelve bright blue LEDs. It uses four (4) pins to control all twelve LEDs, making it easy to add a lot of LEDs without dedicating a lot of valuable I/O lines. An Arduino library with example sketches is provided to make it easy to add to your next blinky project.

Why do it?

Adding multiple LEDs to a project makes it more visually interesting, useful and engaging. Using a clever multiplexing technique called Charlie-plexing allow up to 12 LEDs to be controlled with only four (4) signals. The LEDs can be mounted directly to the provided PCB for a compact linear array or wired individually to reach wherever you need extra blinky-ness!

Values & benefits

Wiring up a lot of LEDs can require a correspondingly large number of connections and extra components. The 12LEDstick reduces this to four connections and four current-limiting resistors (provided). The Arduino library and examples sketches will get your project blinking fast and easy.

Who’s this kit for?

Electronic hobbyists can easily add large numbers of LEDs to their projects without needing extra chips, shift-registers, resistors and wiring. Arduino builders can easily add more blinky bling without using up all the precious I/O lines. Any microcontroller that can sink or source 10mA per I/O pin can drive the 12LEDstick.

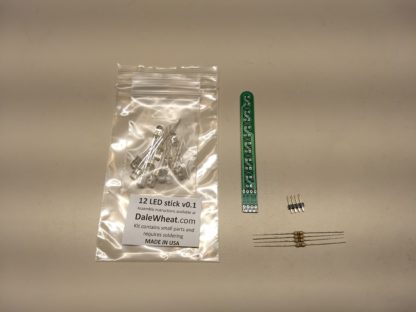

What’s included in the kit?

  • 12LEDstick PCB
  • Qty 12 blue 5mm LEDs
  • Qty 4 current-limiting resistors
  • 4-pin header

Additional information

Weight .25 oz
Dimensions 5 × 3 × .25 in
Assembly Required?

Yes, requires soldering

Extra parts or tools needed?

Soldering iron, Solder, Eye protection

Warnings & Cautions

Adult supervision required, Requires additional parts

Country of Origin

USA

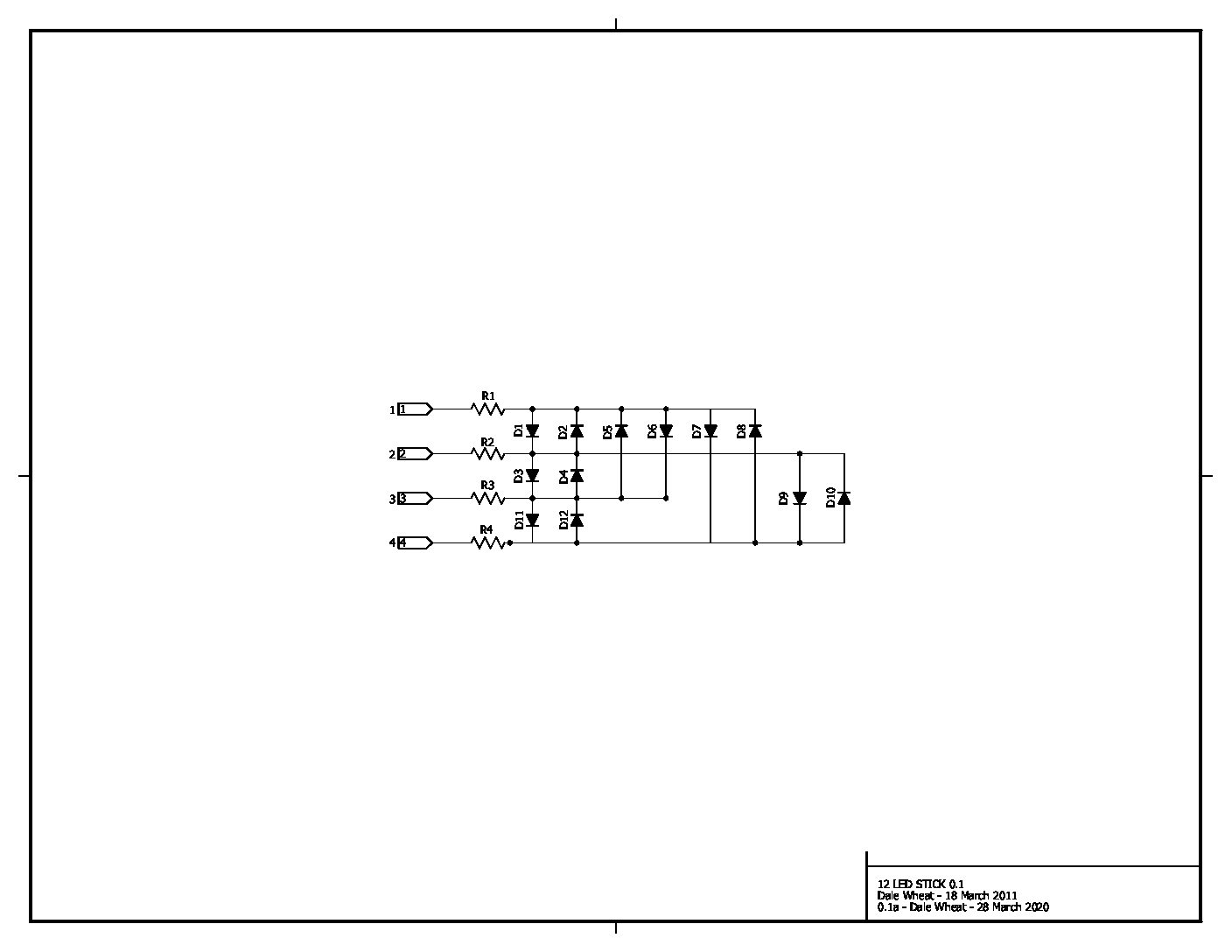

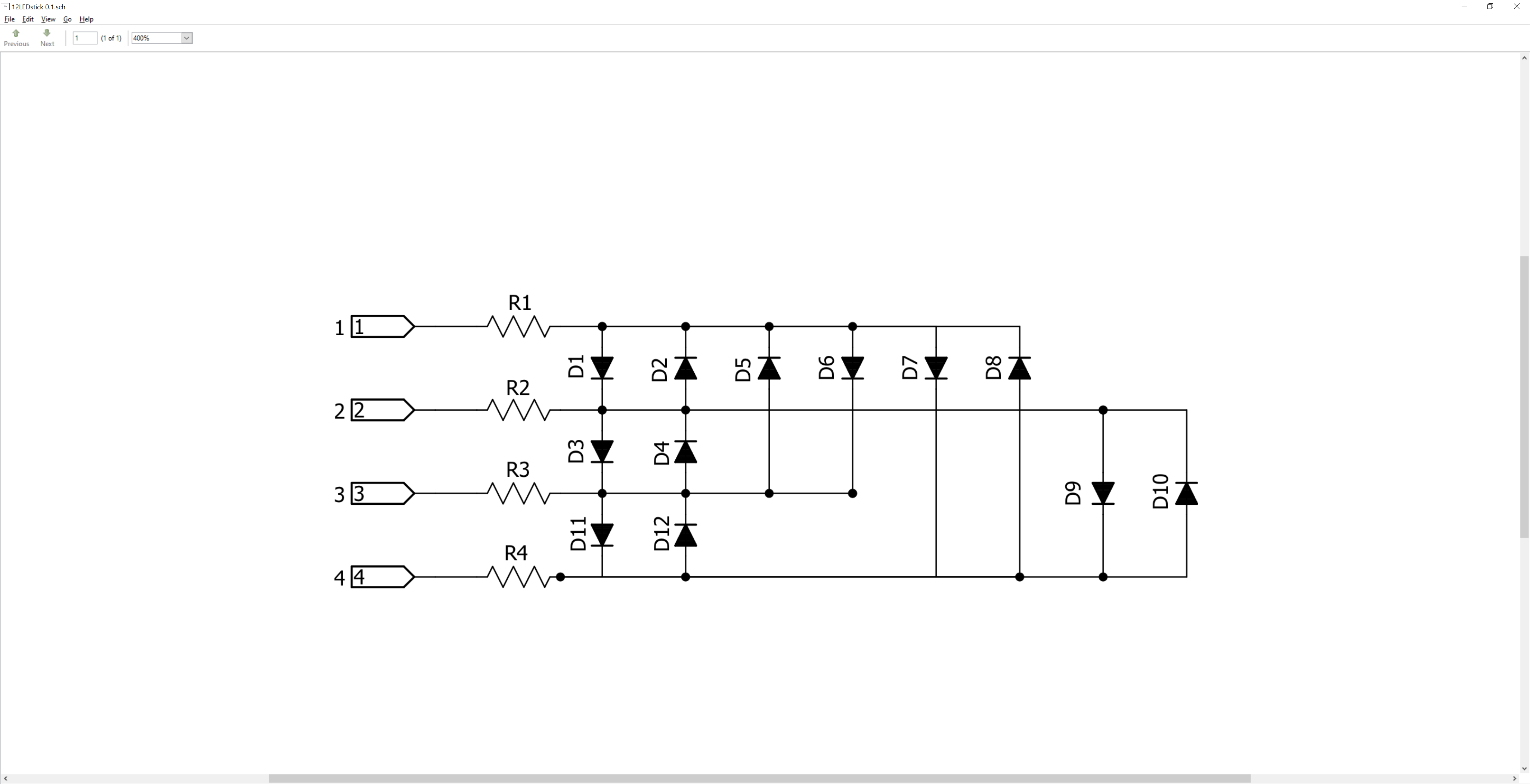

Schematic

PDF https://www.dalewheat.com/12ledstick-0-1a-schematic/

Assembly manual

https://www.dalewheat.com/12ledstick_assembly_manual/

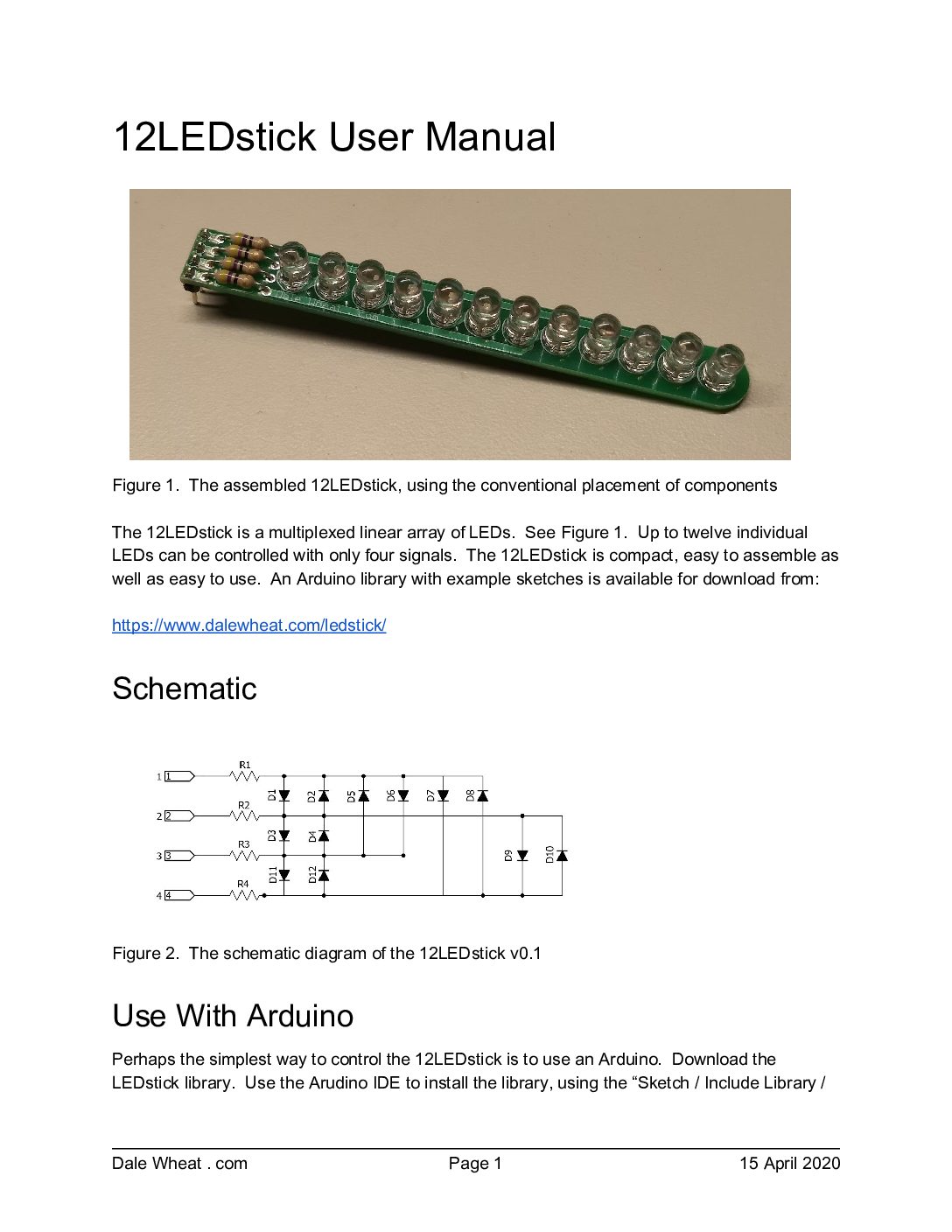

User manual

https://www.dalewheat.com/12ledstick_user_manual/
